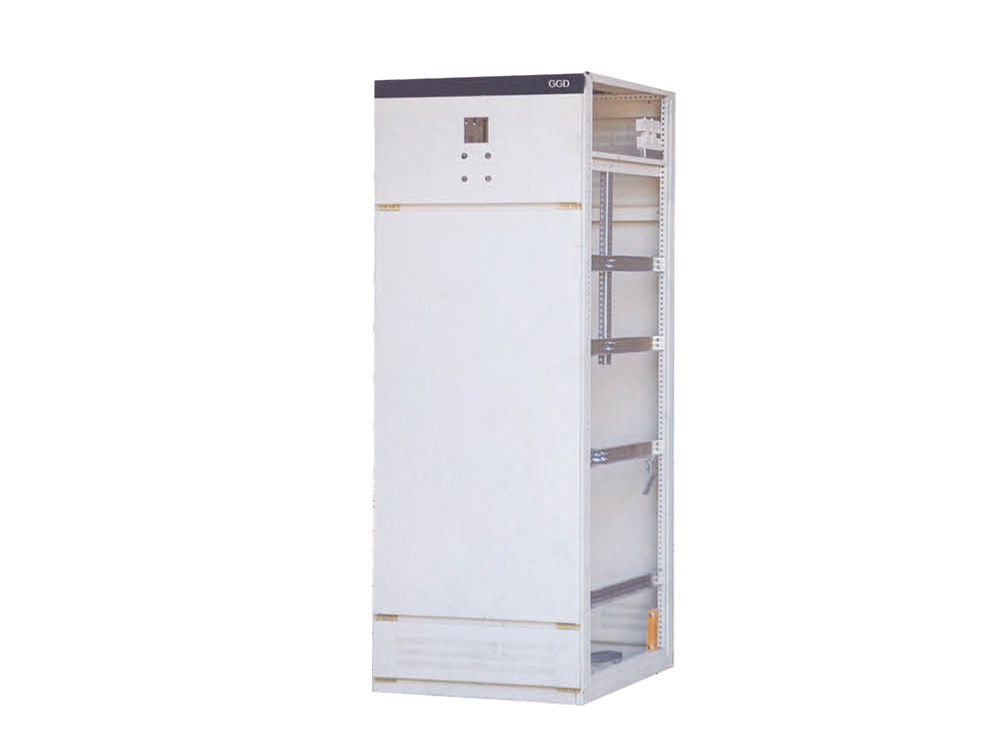

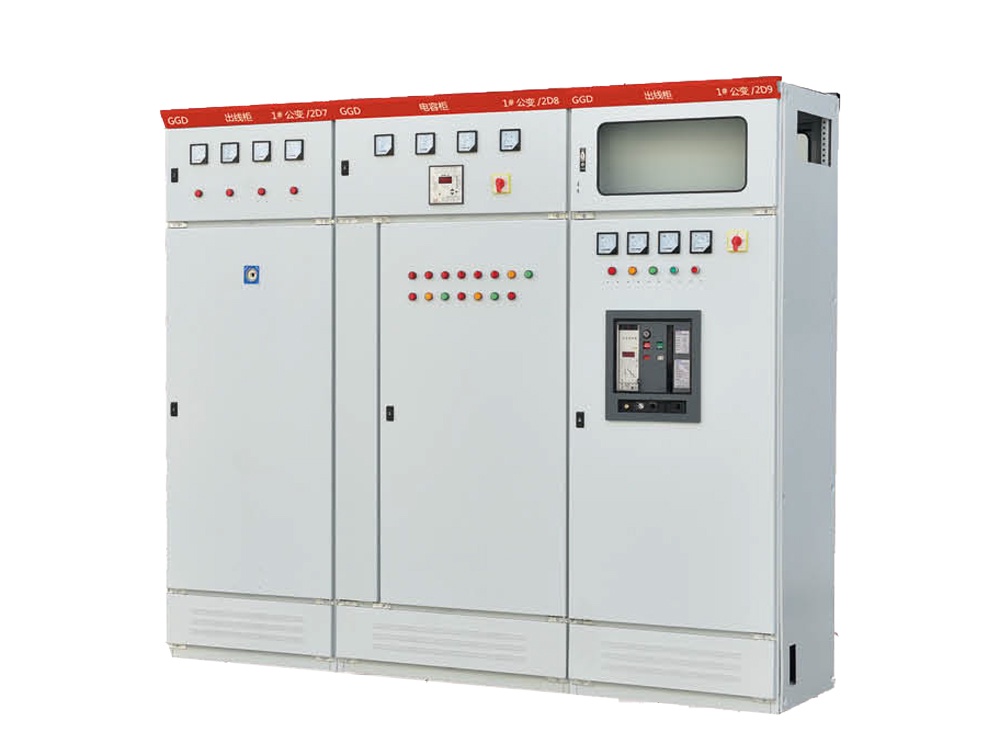

GGD AC low voltage distribution cabinet

The GGD type AC low-voltage distribution cabinet is suitable for AC 50Hz power systems of power plants, substations, factories and enterprises. It has a rated working voltage of 380V and a rated working current up to 3150A, and is used for power conversion, distribution and control of power, lighting and distribution equipment.

The GGD type AC low-voltage distribution cabinet is a new type of low-voltage distribution cabinet designed in accordance with the requirements of the superior authorities in charge of energy, as well as the majority of power users and design departments. It is based on the principles of safety, economy, rationality and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, series nature, strong practicability, novel structure and high protection level. It can be used as an updated and replacement product for low-voltage complete switchgear. The GGD type AC low-voltage distribution cabinet complies with standards such as IEC439 "Low-voltage Complete Switchgear and Control Equipment" and GB7251 "Low-voltage Complete Switchgear".

Operating Conditions

● The ambient air temperature shall not exceed +40℃ and shall not be lower than -5℃. The average temperature over 24 hours shall not exceed +35℃.

● It is for indoor installation and use. The altitude of the installation location shall not exceed 2000m.

● The relative humidity of the ambient air shall not exceed 50% at the highest temperature of +40℃. At lower temperatures, a higher relative humidity is allowed (for example, 90% at +20℃). This is considering that temperature changes may occasionally cause condensation.

● The inclination angle of the equipment installation from the vertical plane shall not exceed 5°.

● The equipment should be installed in a place without severe vibration and impact, as well as a place where corrosive substances are not present enough to affect the electrical components.

● If there are special requirements from the user, they can negotiate with the manufacturer for solutions.

Functions and Features

1. Quality management system ISO 9001: 2015

The operation of the whole system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to  responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.
