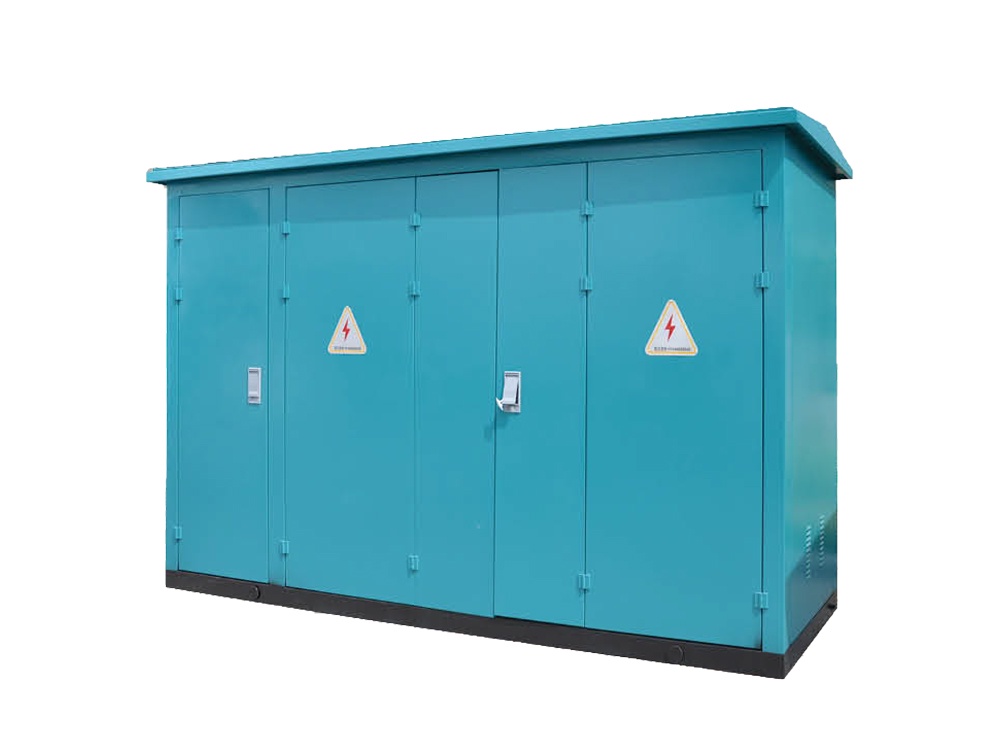

DFW-12 Cable branch box(opening and closing station)

HXGN(H)-12  This environmentally friendly gas-insulated switchgear cabinet is a smart cloud device that is environmentally friendly in materials, economical in price, and convenient to operate. All conductive parts inside the switch are installed in a sealed stainless steel gas box. The gas box is insulated mainly with dry air and thermoplastic materials. The main switch uses vacuum arc extinguishing, the isolating switch adopts a three-position structure, and the adjacent cabinets are connected through solid insulating busbars. The secondary circuit adopts integrated control technology and sup

Operating Conditions

● Ambient temperature: +45℃ to -35℃, maximum temperature difference ≤ 25℃;

● Altitude: ≤ 4000m;

● Humidity: Daily average relative humidity < 95%; Daily average water vapor pressure < 2.2 kPa; Monthly average relative humidity < 90%; Monthly average water vapor pressure < 1.8 kPa;

● Seismic resistance: Seismic intensity does not exceed 8 degrees;

● Surrounding air should not be significantly contaminated by corrosive or flammable gases, water vapor, etc.;

● For outdoor high-voltage switchgear used under conditions beyond normal usage, consultation with the manufacturer and reaching a consensus is required.

Functions and Features

1. Quality management system ISO 9001: 2015

The operation of the whole system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to  responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.
