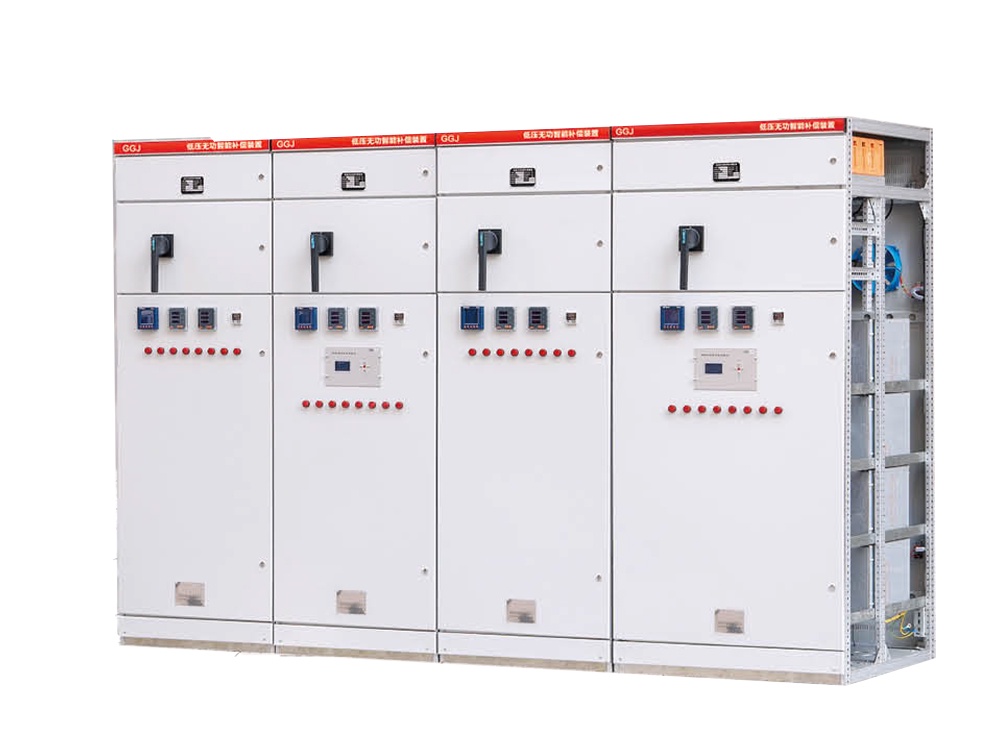

GGJ Low-voltage reactive power inteligent compensation device

The GGJ low-voltage reactive power intelligent compensation device can effectively improve the power factor of the electrical load, reduce line losses, enhance the actual load capacity of the transformer, and has significant energy-saving effects. At the same time, by using specific reactors in the system, it can effectively prevent harmonic amplification and effectively absorb most harmonic currents, ensuring that the total harmonic distortion limit and the content limit of each harmonic current comply with national standards, achieving the purpose of harmonic control. However, if ordinary contactors are used to switch the capacitor bank, it will result in large surge currents, slow compensation time, high maintenance costs, and short service life. Therefore, we recommend that users give priority consideration to using dynamic reactive power compensation devices in the following scenarios: power plants and workshops of industrial and mining enterprises, civil buildings, etc. of the low-voltage power grid. It is particularly suitable for power distribution systems with frequently changing loads and unstable reactive power.

This product complies with: GB/T15576-2008 "Low-voltage integrated reactive power compensation equipment", IEC60439 "Low-voltage integrated switchgear and control equipment", etc. standards.

Operating Conditions

● Ambient temperature: -5℃ to +40℃

● Ambient relative humidity: Not exceeding 90% (at 20℃)

● Altitude: Not exceeding 2000m

● Surrounding medium has no explosion hazard, no gases capable of damaging or corroding metals, no conductive dust, the installation site should not be subject to severe vibration, and there should be no rain or snow erosion.

Functions and Features

● Strong general performance: This compensation cabinet can be combined with various cabinet bodies from both domestic and foreign manufacturers, such as MNS, GCK, GGD, etc.;

● Diverse and flexible capacitor compensation methods: It has Y-type compensation method, A-type compensation method, and Y+A combined compensation method;

● Diversity of communication methods: It has RS-232/4 85 communication interfaces, wireless data transmission module or GPRS module for long-distance communication;

● Accurate and safe control: Voltage zero-crossing triggering is implemented, no surge current during startup, and no high voltage generated during disconnection;

● Long service life: With maintenance-free conditions, the service life can exceed 100,000 hours.

1. Quality management system ISO 9001: 2015

The operation of the whole system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to  responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.

Main Technical Parameters
