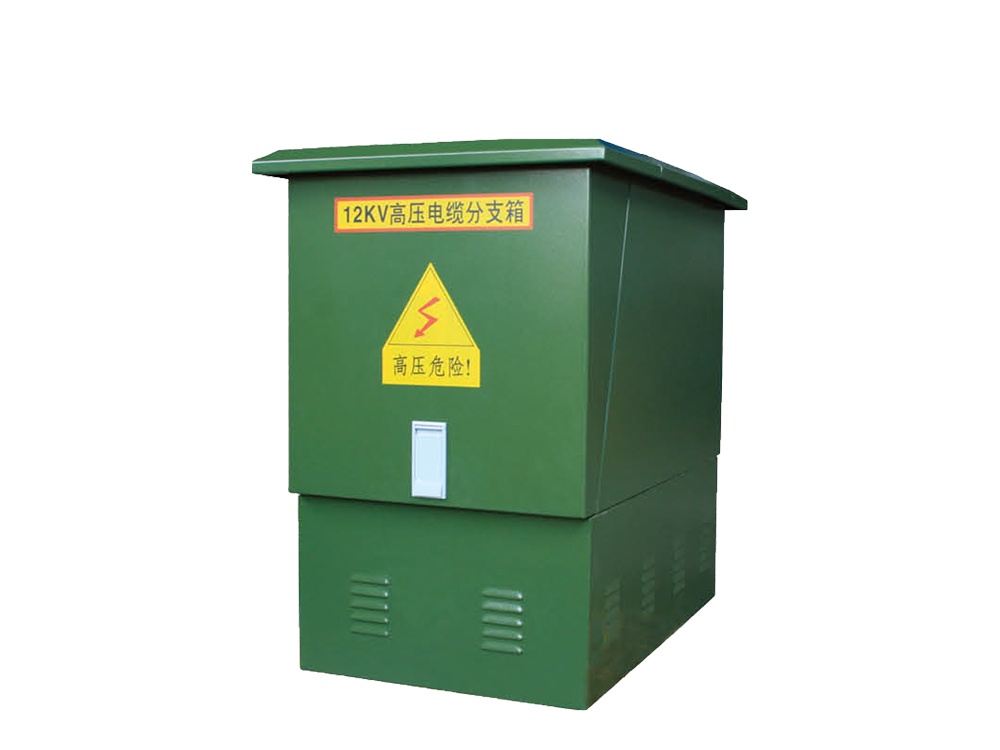

DFW-12KV European cable distribution boxes

DFW-12KV European cable distribution boxes
HXGN(H)-12 This environmentally friendly gas-insulated switchgear cabinet is a smart cloud device that is environmentally friendly in materials, economical in price, and convenient to operate.
WhatsApp : +86 19861988572
Email : Robben@frt-electric.com
Phone : +86 19861988572
View Quote >

Product Description

DFW-12KV European cable distribution boxes


HXGN(H)-12  This environmentally friendly gas-insulated switchgear cabinet is a smart cloud device that is environmentally friendly in materials, economical in price, and convenient to operate. All conductive parts inside the switch are installed in a sealed stainless steel gas box. The gas box is insulated mainly with dry air and thermoplastic materials. The main switch uses vacuum arc extinguishing, the isolating switch adopts a three-position structure, and the adjacent cabinets are connected through solid insulating busbars. The secondary circuit adopts integrated control technology and sup.


Operating Conditions

● Air temperature: -30℃ to +40℃;

● Maximum wind speed: Approximately 34m/s (not exceeding 700Pa);

● Relative humidity: Daily average not exceeding 95%; Monthly average not exceeding 95%;

● Installation conditions: Horizontal acceleration not exceeding 0.4m/s², Vertical acceleration not exceeding 0.15m/s²;

● Installation location: Surrounding air should not be significantly contaminated by corrosive, flammable gases, water vapor, etc., there should be no severe vibrations, and the inclination of the installation location should not exceed 3°


Functions and Features

1. Quality management system ISO 9001: 2015

The operation of the whole system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to  responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.

Technical Parameters

ProjectParameters
Rated Voltage12kV
Rated Current630A
Magnetic Stability Current50kA/0.3s
Thermal Stability Current20kA/3s
1-minute Power Frequency Withstand Voltage42KV
15-minute DC Withstand Voltage52KV
Lightning Impact Withstand Voltage105KV
Box Protection GradeIP3


FAQ

Q:

Who are we?

A:
Liaocheng Furuntong Import & Export Co., Ltd. was established in 2026 and is headquartered in Liaocheng, Shandong—a major hub for power distribution equipment manufacturing in China. We have evolved into a comprehensive energy solutions provider, integrating R&D and design, equipment manufacturing, engineering installation, and international trade.
