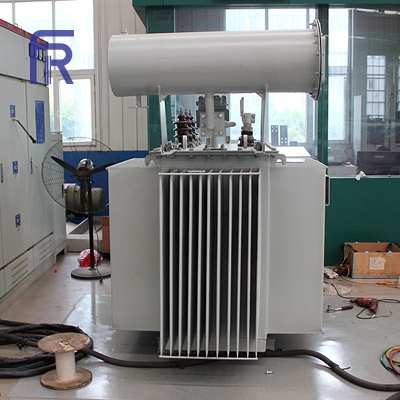

Introduction of S20-1600kVA Oil immersed Power Transformer

This kind of product is applied to power system, it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power illumination for the industry and agriculture.

The company introduces domestic and overseas advanced techniques, adopts the latest material, and optimizes design, which enables the product structure more reasonable and greatly improves the product’s electric strength, mechanical strength, and heat-sinking capability.

Advantages of a three-phase oil-immersed transformer S20-1600KVA

-The core of silicon steel is made of 0.18 ~ 0.3mm orientation silicon steel sheet stacked by punching and shearing, which has good stability.

-The coil is made of pure copper. The acetal enamelled wire is used for high voltage and oxygen-free copper conductor or copper foil for low voltage to improve the short-circuit resistance.

-The Dyn11 connection symbol is used to avoid the influence of higher harmonics. It provides high resistance against uncompensated load and improves the quality of power supply.

-Vacuum oiling is adopted by the transformer to remove bubbles in the core and ensure stable insulating property.

The three-phase oil-immersed transformer 1600KVA gets quality standards of product

The 1600kVA three-phase dry-type transformer undergoes strict quality control at every stage from input to output, fully complying with the stringent requirements of international standards such as IAF and CANS.

1. Quality management system ISO 9001: 2015

The entire system operates under strict control and management. This ensures product quality at every stage, from receiving customer requirements to design, material selection, production, installation, testing, packaging, delivery, and after-sales service, with all steps strictly following a logically interconnected process.

2. Environmental management ISO 14001: 2015

The pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.

3. Accreditation certificate ISO / IEC 17025: 2017

ISO/IEC 17025:2017 certification confirms that the technical quality meets all our specific international standards for testing and laboratory layout requirements. All products undergo comprehensive testing in a qualified testing laboratory before leaving the factory to ensure consistent quality and give customers complete peace of mind.

Parameters of energy efficiency oil-immersed transformers with capacity from 30kVA – 2500kVA and voltage 10kV
