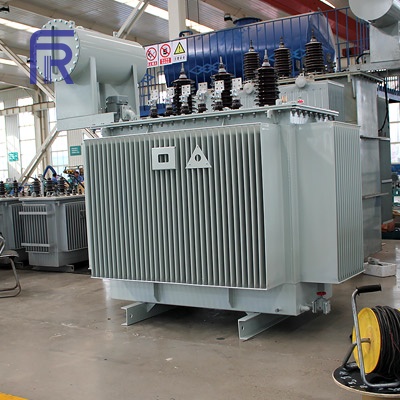

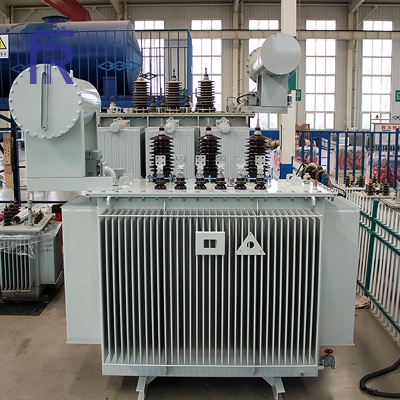

Introduction of S13 2000kVA 35kv/0.4kV Three Phase Oil Immersed Power Distribution Transformer

This kind of product is applied to power system, it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power illumination for the industry and agriculture.

The company introduces domestic and overseas advanced techniques, adopts the latest material, and optimizes design, which enables the product structure more reasonable and greatly improves the product’s electric strength, mechanical strength, and heat-sinking capability.

Advantages of a three-phase oil-immersed transformer S13-2000KVA

-The core of silicon steel is made of 0.18 ~ 0.3mm orientation silicon steel sheet stacked by punching and shearing, which has good stability.

-The coil is made of pure copper. The acetal enamelled wire is used for high voltage and oxygen-free copper conductor or copper foil for low voltage to improve the short-circuit resistance.

-The Dyn11 connection symbol is used to avoid the influence of higher harmonics. It provides high resistance against uncompensated load and improves the quality of power supply.

-Vacuum oiling is adopted by the transformer to remove bubbles in the core and ensure stable insulating property.

The three-phase oil-immersed transformer 2000KVA gets quality standards of product

Three-phase dry-type transformer 2000kVA passes strict quality control at all stages from input to output, ensuring to meet the stringent requirements of International standards fully: IAF,CANS

1. Quality management system ISO 9001: 2015

The operation of the whole system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.

Parameters of oil-immersed transformers with capacity from S13 50kVA – 2500kVA and voltage 35kV
