The iron core of S11-M series low loss energy-saving transformer produced by our company adopts laminated structure.

This product is based on fully absorbing the advanced technology and process of domestic oil immersed transformer, combined with the technical level of our company, putting the reliability of the product in the first place, at the same time, the no-load loss and no-load current of the product are greatly reduced.

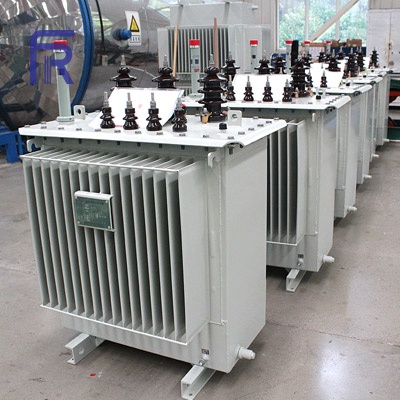

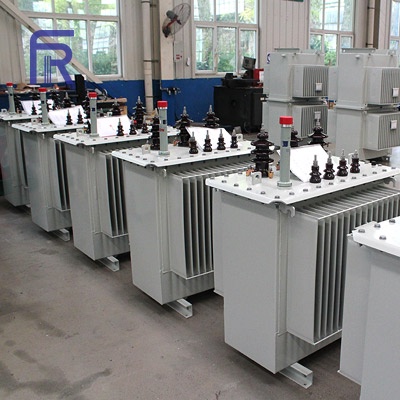

Advantages of a three-phase oil-immersed transformer S11-200KVA

-The core of silicon steel is made of 0.18 ~ 0.3mm orientation silicon steel sheet stacked by punching and shearing, which has good stability.

-The coil is made of pure copper. The acetal enamelled wire is used for high voltage and oxygen-free copper conductor or copper foil for low voltage to improve the short-circuit resistance.

-The Dyn11 connection symbol is used to avoid the influence of higher harmonics. It provides high resistance against uncompensated load and improves the quality of power supply.

-Vacuum oiling is adopted by the transformer to remove bubbles in the core and ensure stable insulating property.

The three-phase oil-immersed transformer 200KVA gets quality standards of product

Three-phase dry-type transformer 2500kVA passes strict quality control at all stages from input to output, ensuring to meet the stringent requirements of International standards fully: IAF,CANS

1. Quality management system ISO 9001: 2015

The operation of the whole  system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.

2. Environmental management ISO 14001: 2015

Pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to responsibility to a wide range of customers. Commit to providing high-quality technical products that are most environmentally friendly.
